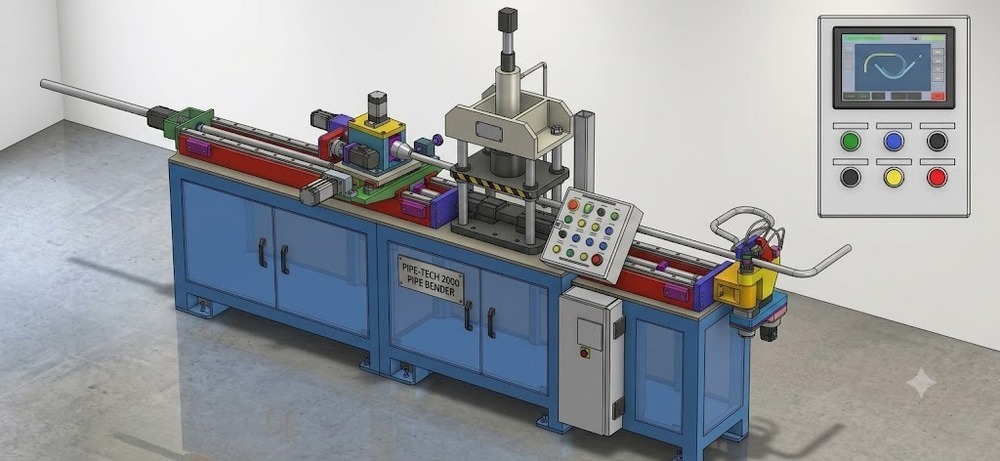

Designing of CNC pipe bending machine.

Name: Designing of CNC pipe bending machine.
Brand: NEW TECH MACHINES
Price: 50000 INR
Availability: InStock

Price 50000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Designing of CNC pipe bending machine. Specification

Product Type
CNC Pipe Bending Machine

Material
Mild Steel Body with Alloy Steel Components

Capacity
Up to 50 mm OD Pipes

Computerized
Yes

Automatic Grade
Fully Automatic

Control System
PLC Based Touchscreen Control Panel

Processing Type
Pipe Bending, Programmable Multi-Axis Bending

Voltage
415V, 3 Phase, 50 Hz

Power
3.5 kW

Dimension (L*W*H)
2200 mm x 900 mm x 1400 mm

Weight
1,100 kg

Color
Blue & Yellow

Accessories Included
Standard Die Sets, Maintenance Kit, User Manual

Number of Axes
Three-Axis (X,Y,Z)

Lubrication System
Automatic Centralized Lubrication

Noise Level
Less than 65 dB

Bending Speed
5-20 rpm Adjustable

Safety Features
Emergency Stop, Overload Protection, Safety Guard

Operation Mode
Manual, Semi-Automatic, and Automatic

Bending Radius
Minimum 1.5D of Pipe Diameter

Maximum Bending Angle
190 Degrees

Memory Storage
Up to 100 Programs

Display Type
Color HMI with Graphical Interface

Pipe Material Compatibility
Steel, Stainless Steel, Copper, Aluminum

Hydraulic System
Built-in Oil Cooling Unit

Input Method
USB & Network Connectivity for Data Import

Drive Mechanism
Servo Motor Driven

Designing of CNC pipe bending machine. Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
3-5 Days

About Designing of CNC pipe bending machine.

Experience the valiant efficiency of our CNC Pipe Bending Machine - a majestic solution designed for uncompromised durability and performance. Crafted from a robust mild steel body accented with decorated alloy steel components, this machine guarantees reliability and unprecedented results. Buy Online at the lowest price for a limited time and enjoy advanced features including three-axis programmable bending, automatic lubrication, and a user-friendly HMI display. Engineered for pipes up to 50 mm OD, it handles steel, stainless steel, copper, and aluminum with ease. Perfect for every industry that seeks precision and speed in pipe bending.

Advanced Design for Diverse Applications

The CNC pipe bending machine is tailored for robust industrial use and excels in fabrication, automotive, shipbuilding, and architectural applications. It features three-axis (X, Y, Z) operation, programmable multi-axis bending, and a fully automatic, manual, or semi-automatic mode for unmatched flexibility. The system ensures safety through emergency stops and overload protection, making it ideal for high-performance production environments seeking accuracy and safety.

Express Deals with Superior Supply Support

Benefit from sale price deals with express shipping when purchasing our CNC pipe bending machine. We ship from India's prime FOB ports, and samples are available upon request to ensure product fit for your operation. The machine's supply ability is steady, ensuring you get timely delivery at competitive rates. Standard charges apply for shipping and sample requests, all details transparently provided to streamline your procurement and upgrade your production line efficiently.

FAQ's of Designing of CNC pipe bending machine.:

Q: How do I operate the CNC pipe bending machine for automatic and manual modes?

A: The machine features a PLC-based touchscreen control panel and color HMI with a graphical interface, allowing you to seamlessly switch between manual, semi-automatic, and fully automatic operation modes to suit various project requirements.

Q: What pipe materials are compatible with this bending machine?

A: This CNC pipe bending machine supports a wide range of pipe materials, including steel, stainless steel, copper, and aluminum, making it versatile for multiple industry applications.

Q: When should I perform maintenance on the CNC pipe bending machine?

A: Routine maintenance is simplified with the included automatic centralized lubrication system and maintenance kit. Refer to the user manual for scheduled maintenance intervals to ensure optimal performance.

Q: Where can I request a sample or purchase the machine?

A: You can request a sample or buy online through our official sales channels. Express shipping and competitive sale prices are available during limited-time offers.

Q: What safety features does the machine include?

A: The machine is equipped with emergency-stop buttons, overload protection, a safety guard, and a built-in oil cooling unit, ensuring a secure operating environment for users.

Q: How can program memory enhance my production process?

A: With memory storage for up to 100 programs, you can efficiently handle multiple bending patterns, saving time and ensuring repeatability for high-volume production.
