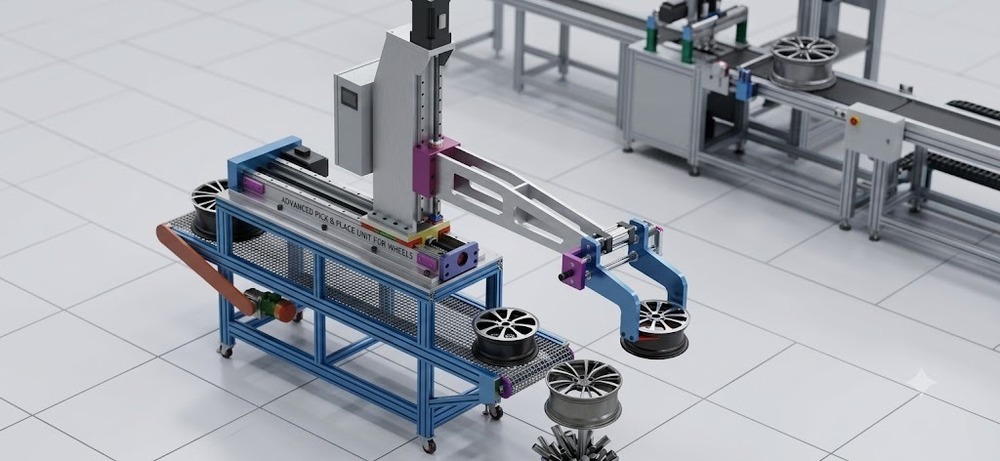

Designing of Pick and place unit

Name: Designing of Pick and place unit
Brand: NEW TECH MACHINES
Price: 25000 INR
Availability: InStock

Price 25000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Designing of Pick and place unit Specification

Product Type
Pick and Place Unit

Material
Mild Steel/Aluminum Alloy/SS304

Capacity
25 kg per cycle

Computerized
Yes

Automatic Grade
Fully Automatic

Control System
PLC based

Processing Type
Robotic Automation

Voltage
220-240V AC

Power
1.5 kW

Dimension (L*W*H)
1800 x 900 x 1600 mm

Weight
250 kg

Color
Custom/Standard Industrial Blue & Metallic

Noise Level
< 65 dB

Repeatability
0.05 mm

Input Supply
Single/Three Phase

Installation Type
Floor Mounted

Operation Mode
Servo/Pneumatic Driven

Safety Feature
Emergency Stop & Safety Enclosure

Cycle Time
8 seconds per pick

User Interface
7-inch Touchscreen HMI

Ambient Temperature
0C to 45C

Communication
Ethernet/Modbus/Profinet

End Effector Type
Dual Suction Grippers

Application
Assembly Line & Industrial Automation

Customizability
Gripper & Arm Configurable as per need

Lifting Height
700 mm (Customizable)

Maintenance
Low, with easy access panels

Designing of Pick and place unit Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Week

Delivery Time
3-5 Days

About Designing of Pick and place unit

Select our sought-after Pick and Place Unit, meticulously designed to deliver platinum-level performance in industrial automation and assembly lines. This in-demand solution integrates a PLC-based control system and offers both servo and pneumatic drive modes, ensuring spectacular repeatability at 0.05 mm. Perfect for high-precision operations, it features dual suction grippers, emergency safety mechanisms, and a user-friendly 7-inch HMI. With a robust build from mild steel, aluminum alloy, or SS304, this unit supports up to 25 kg per cycle. Find customized configurations and reliable communication options-making it the ideal choice for modern manufacturing.

Professional Use & Versatility in Industrial Settings

The designing of our pick and place unit caters to a wide range of applications within the assembly line and industrial automation sector. Specifically floor-mounted, it is sought after for environments requiring well-organized, repetitive handling of components. This advanced machine is typically used by skilled technicians and engineers seeking reliable and consistent material transfer. Its full automation and PLC-controlled accuracy make it the perfect tool for enhancing productivity in demanding manufacturing sites.

Unmatched Supply, Packaging, & Sample Benefits

You'll find our pick and place units ready in stock for immediate outlay, ensuring fast service for your automation needs across India. Each unit is securely packaged to protect its spectacular build during transit. Interested clients can access sample units before a full-scale order, allowing comprehensive evaluation at a competitive sale price. Our steady supply ability and tailored packaging details highlight our commitment to excellence and dependable product delivery for your business.

FAQ's of Designing of Pick and place unit:

Q: How does the pick and place unit ensure precise operation during assembly tasks?

A: The unit uses servo or pneumatic-driven modes coupled with PLC-based control and repeatability of 0.05 mm, providing exceptional precision for assembly and automation operations.

Q: What are the customizable options for this pick and place unit?

A: Customers can choose gripper and arm configurations as needed, select from various materials like mild steel, aluminum alloy, or SS304, and specify preferred colors for their unit.

Q: When is the optimal time to integrate this pick and place unit into a production line?

A: Integration is ideal during system upgrades, expansions, or when automation is required to improve consistency, safety, and cycle time in handling operations.

Q: Where can the pick and place unit be installed, and what are the primary site requirements?

A: It is floor-mounted, suitable for industrial and assembly environments where a stable power supply and network connectivity (Ethernet/Modbus/Profinet) are available.
